01 · Automation
Auto marking
Selected parts are automatically marked to attached plating. Position and custom markers can be added or modified in seconds.
From auto marking to live material lists — pictured here as it runs natively inside Rhinoceros.
Selected parts are automatically marked to attached plating. Position and custom markers can be added or modified in seconds.

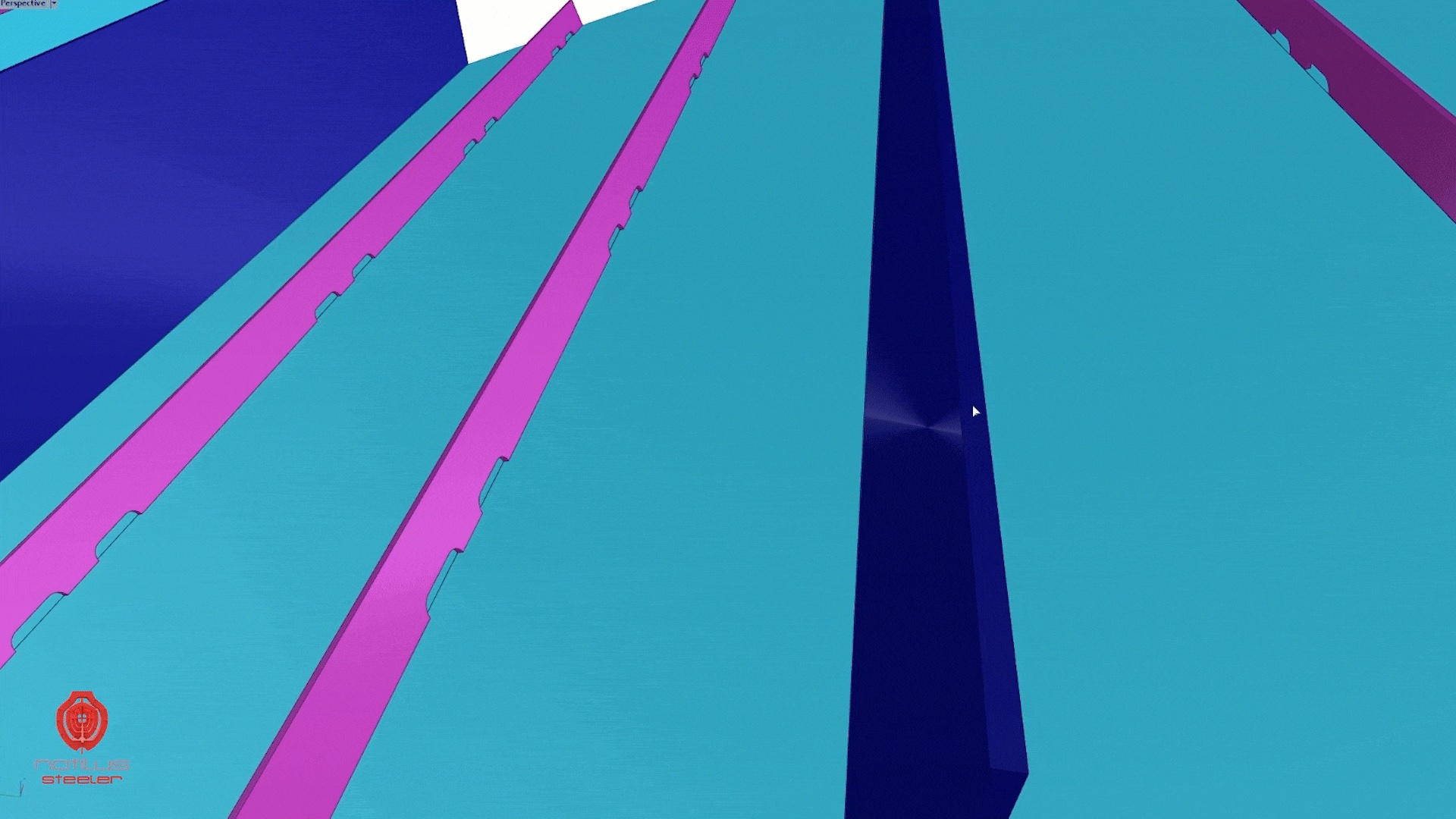

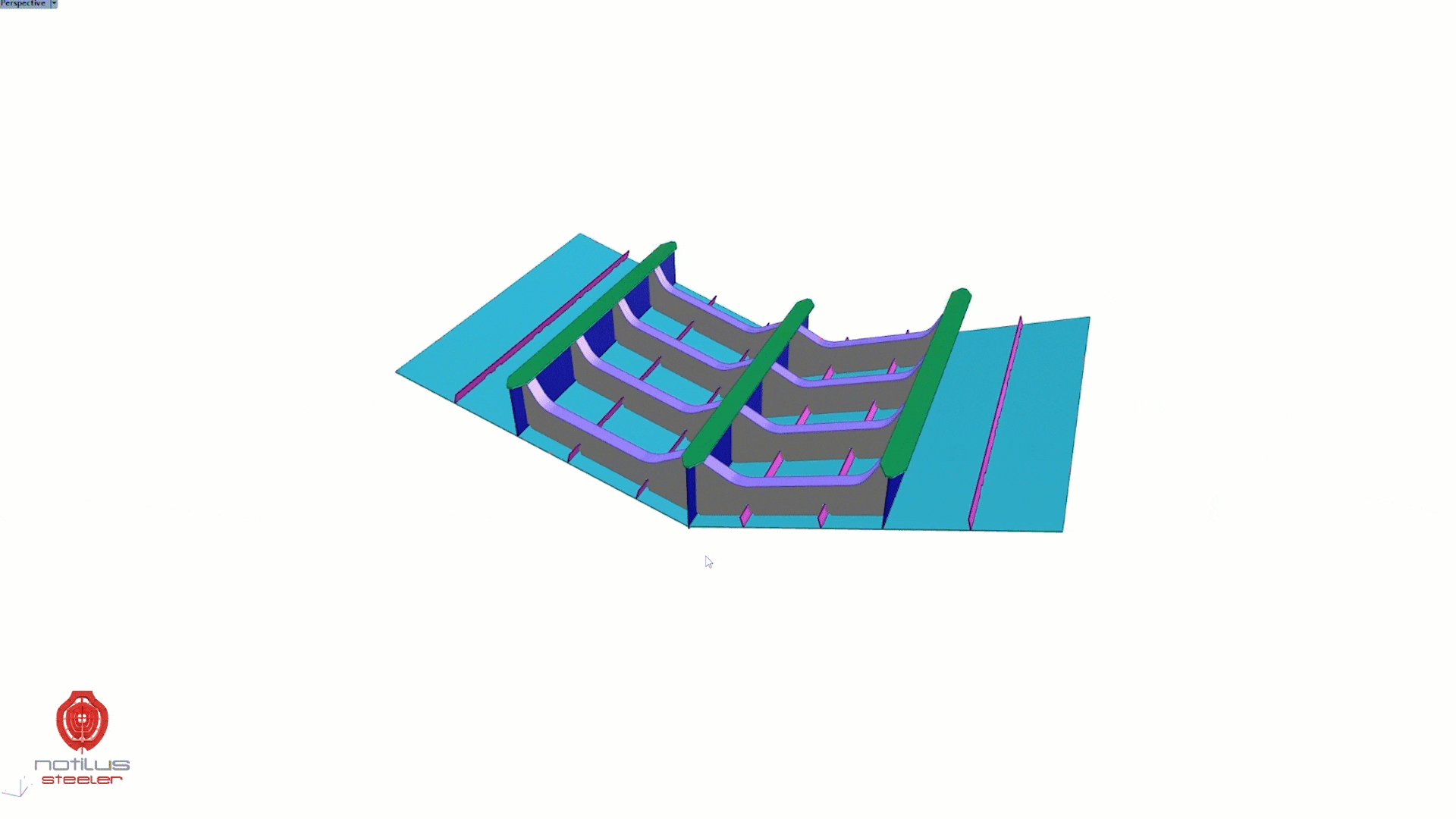

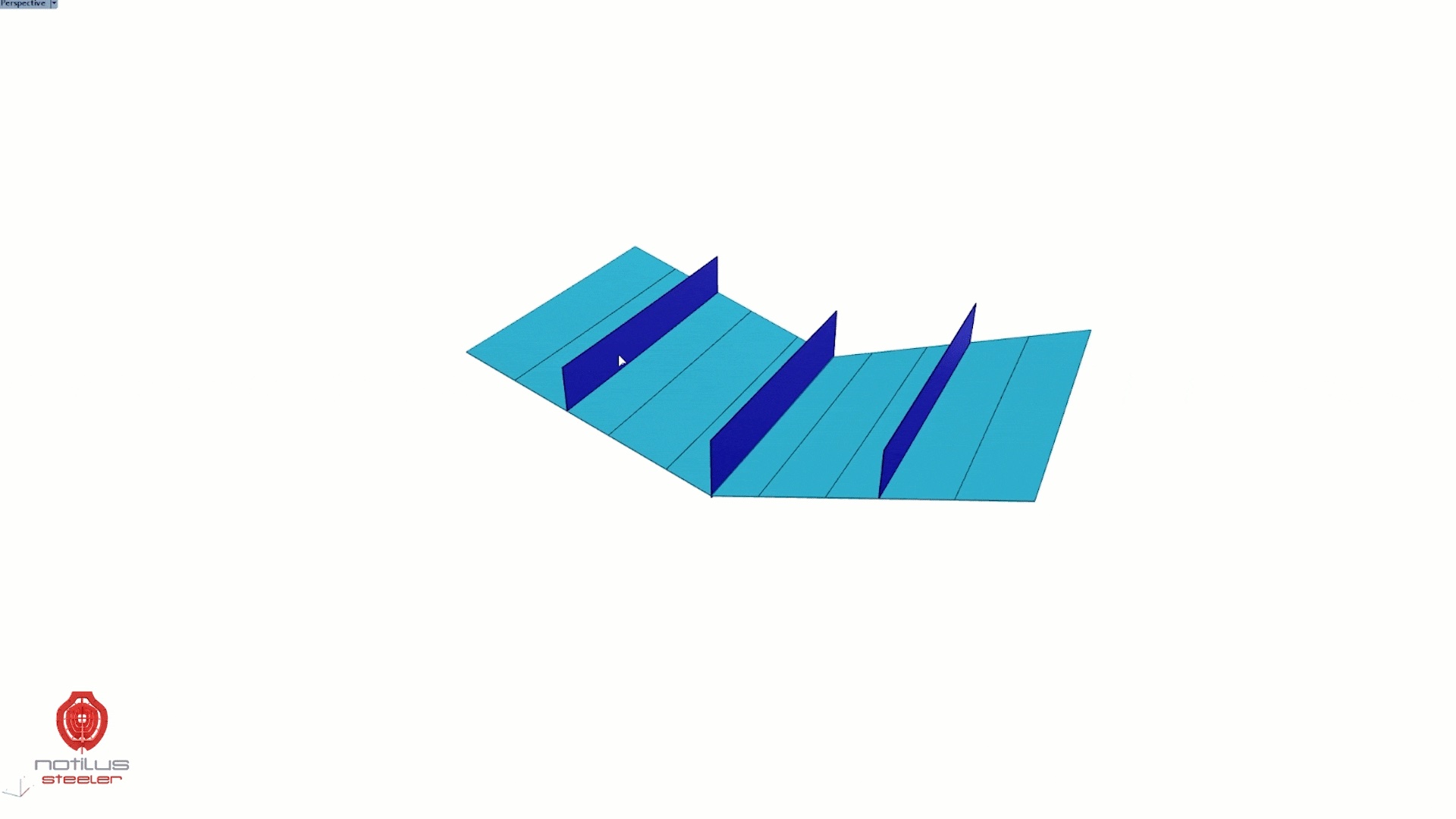

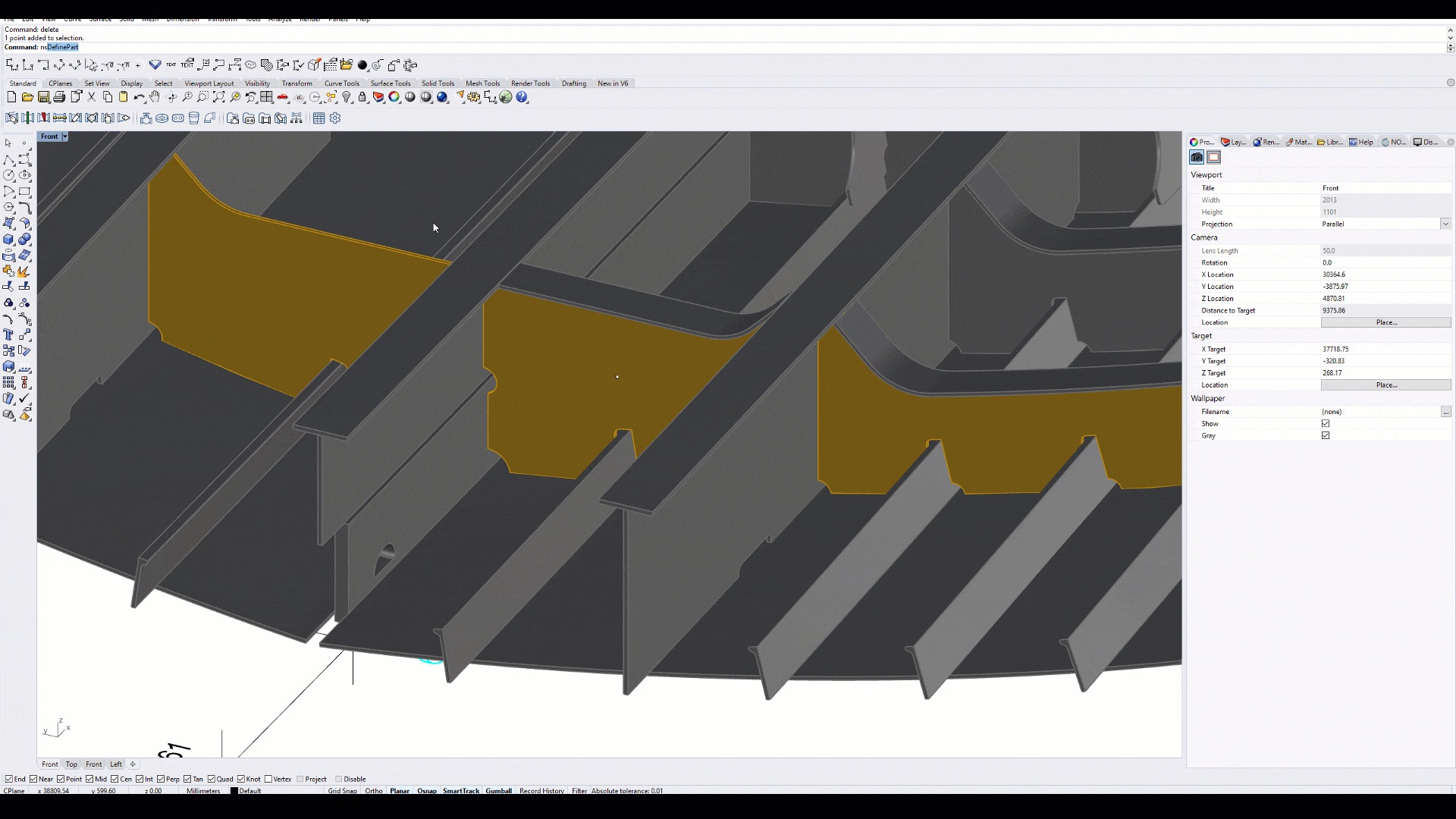

Automatic stiffener generation with automatic cut-outs lets you create or modify structure as the hull form evolves.
Sheet database tracks remaining stock and re-use, with live remnant management across blocks.
Recognises type, thickness and pose on existing models — turn imported geometry into structured parts in one click.

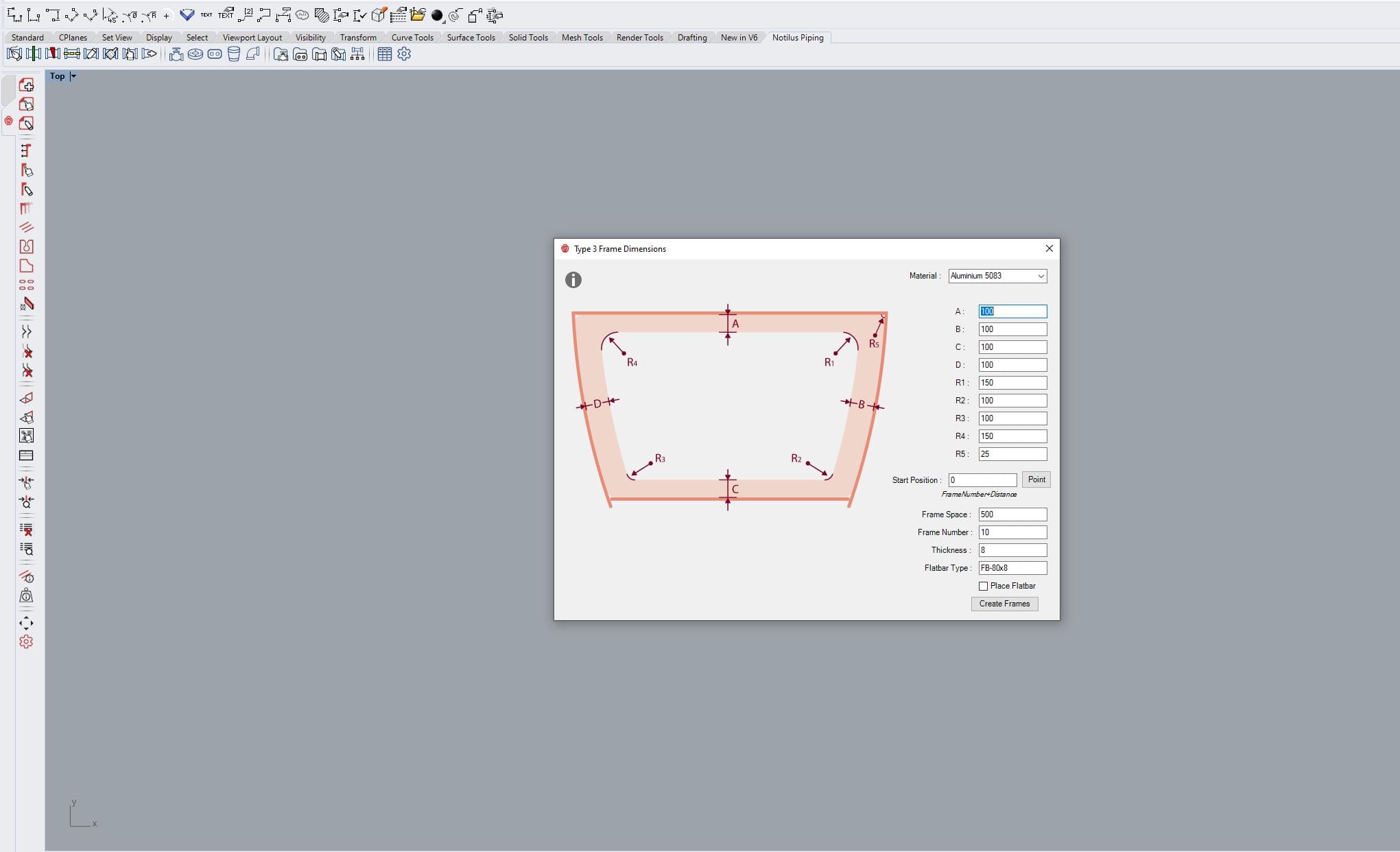

Rapid, accurate modelling with a clean Rhino-native UI — short commands, sensible defaults, no relearning curve.
Face plates as stiffeners with bending schemas and plots — including amorphous geometry support.

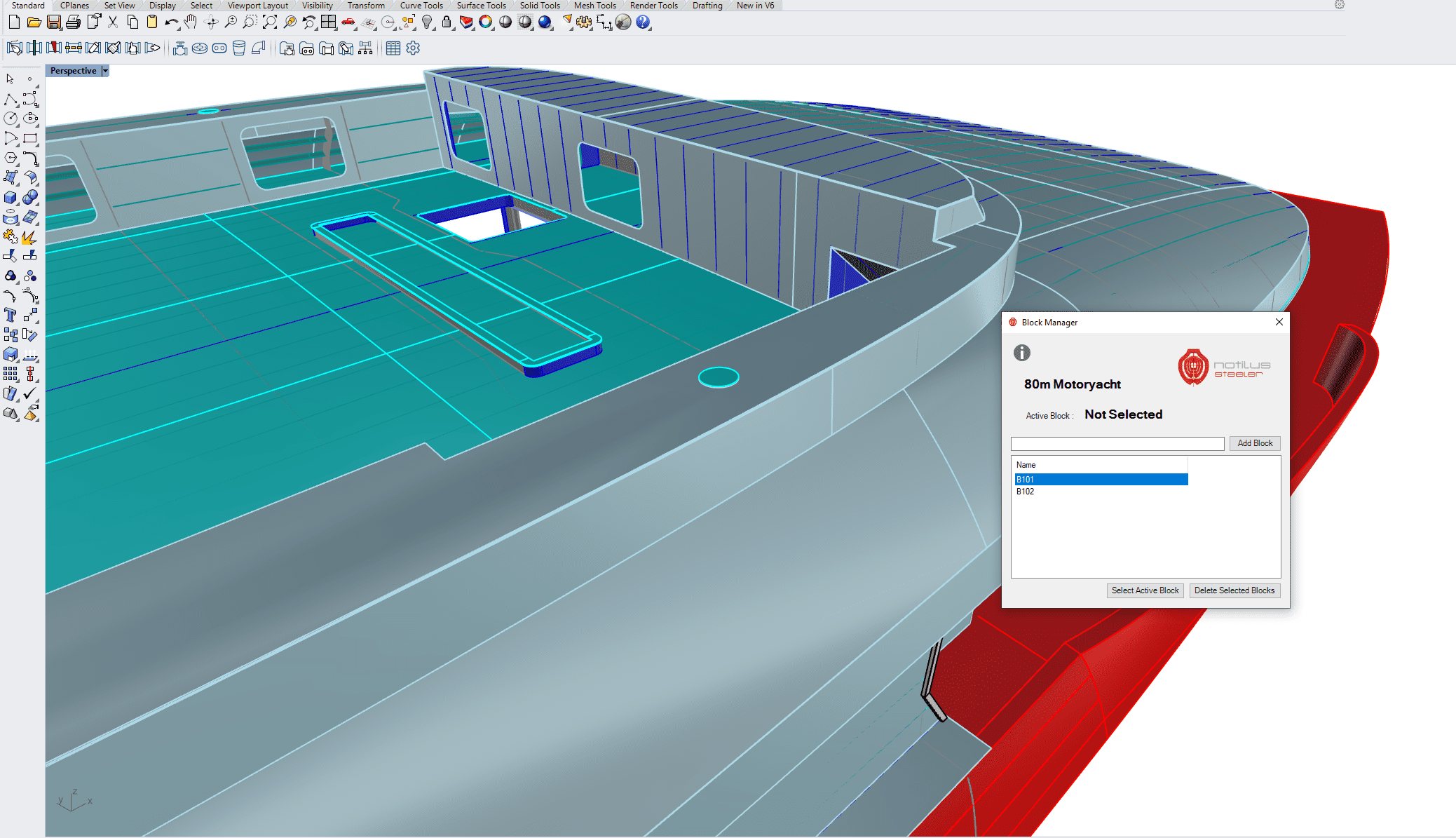

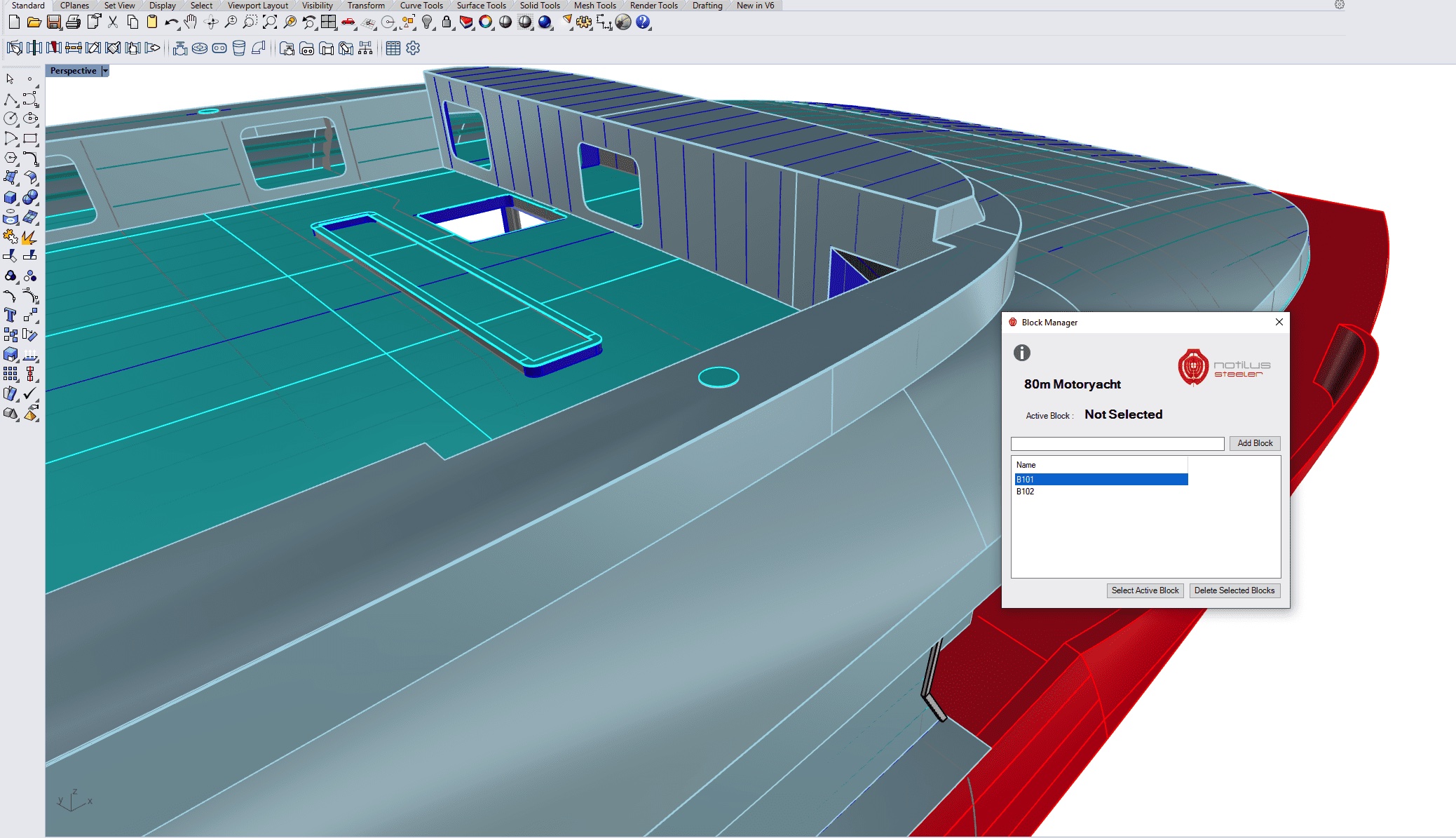

Separate the model into blocks for production planning — assign, isolate and progress each block independently.

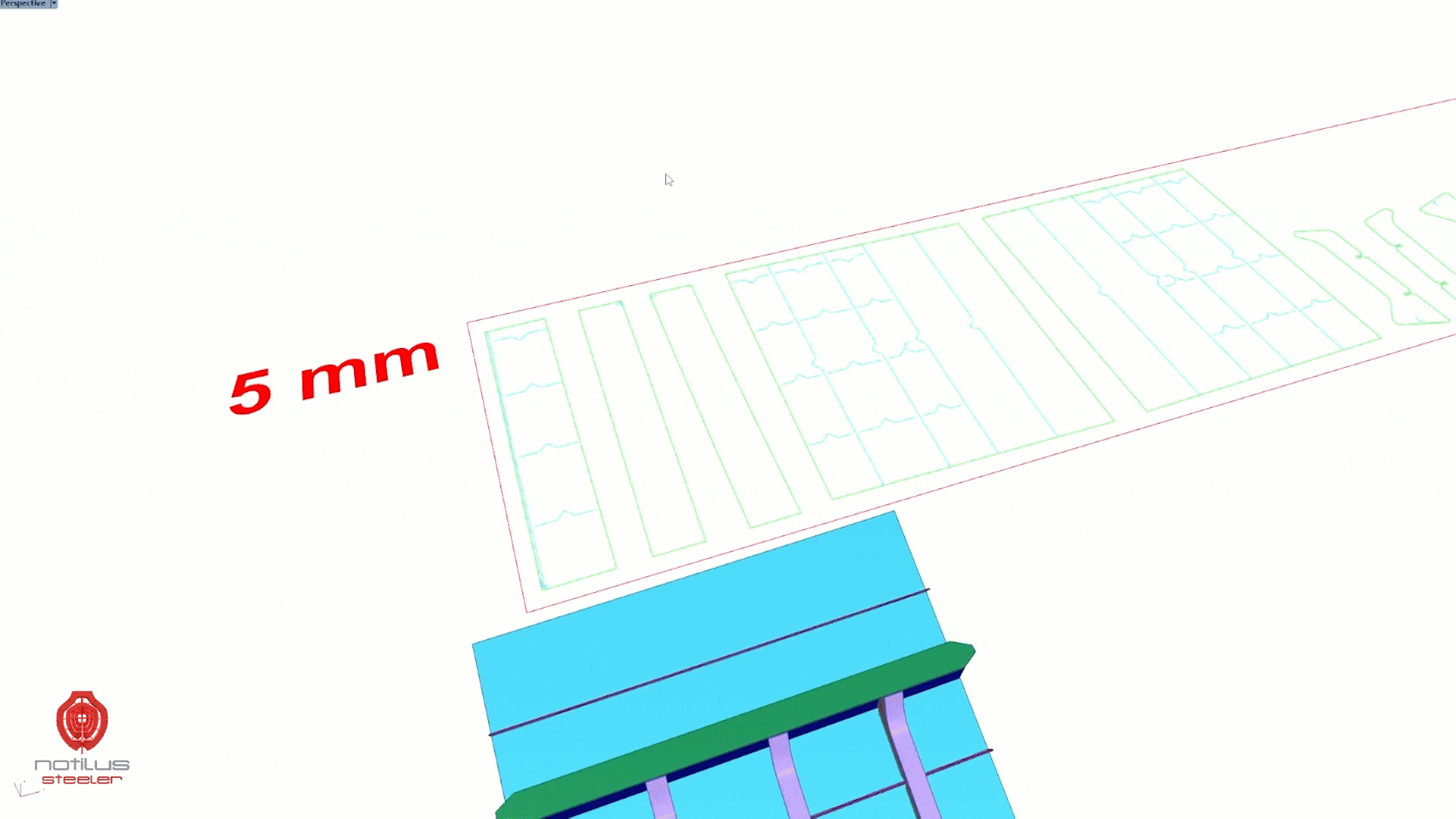

Both planar and amorphous plates can be expanded with markers — directly into the cutting workflow.
Symmetric parts update on the mirrored side automatically — model once, both sides stay in sync.

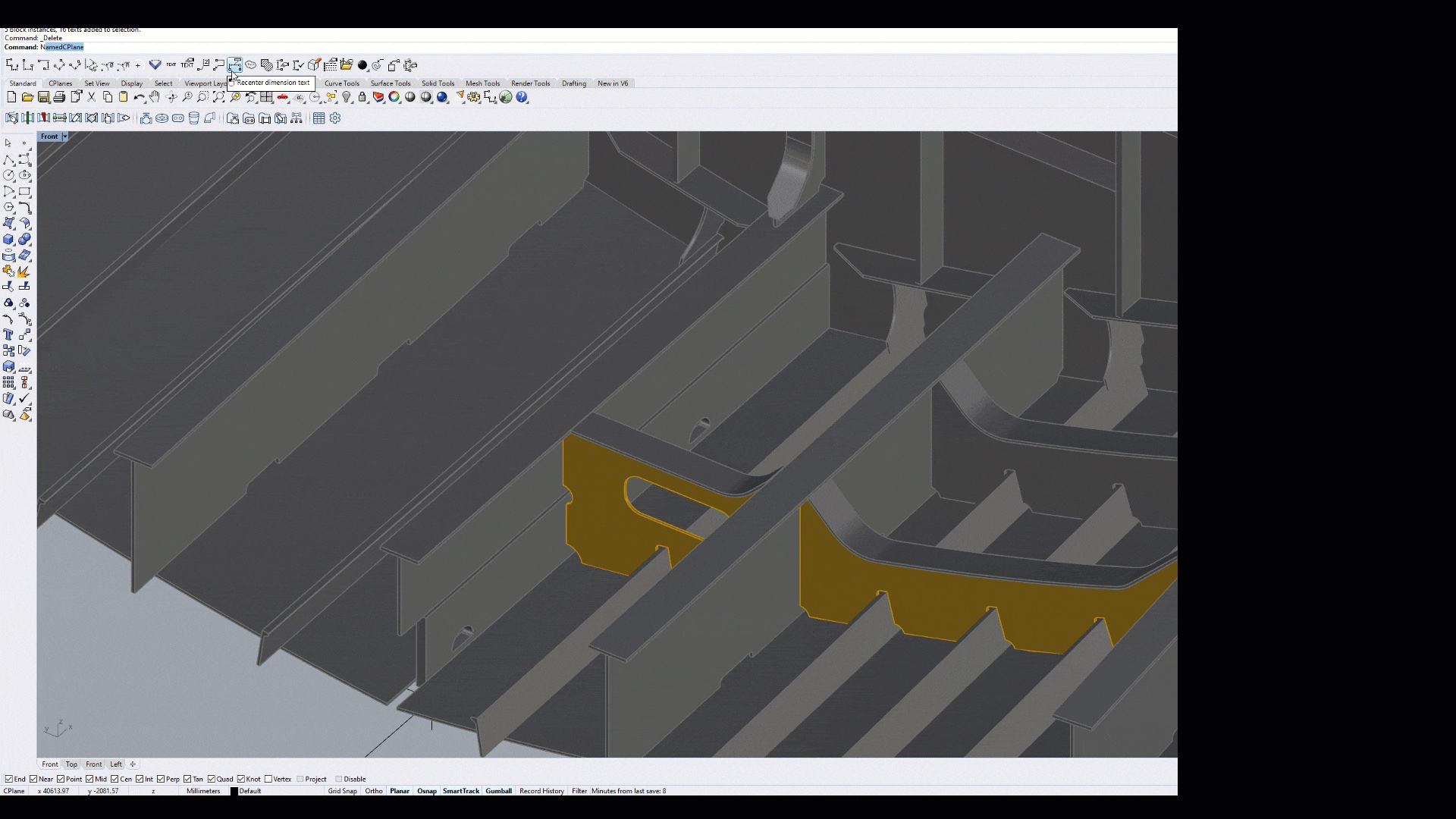

Add and modify lightening holes without manual sketching — parametric and editable at any stage.

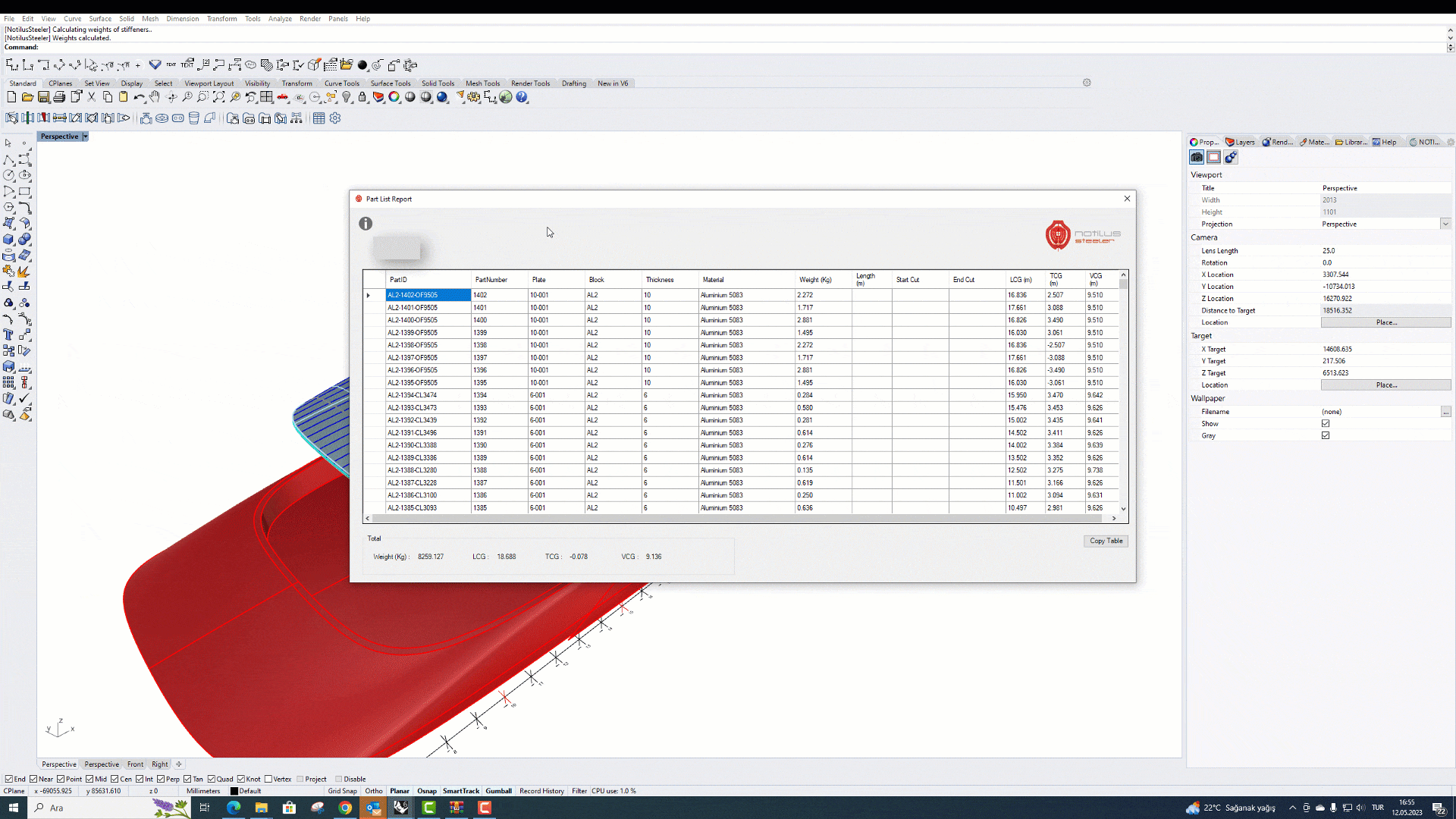

Live BOM and centre-of-gravity tracking per block — exportable straight to Notilus Drafting and Clipper.
Steeler reads the Rhino NURBS hull and frame layout directly.

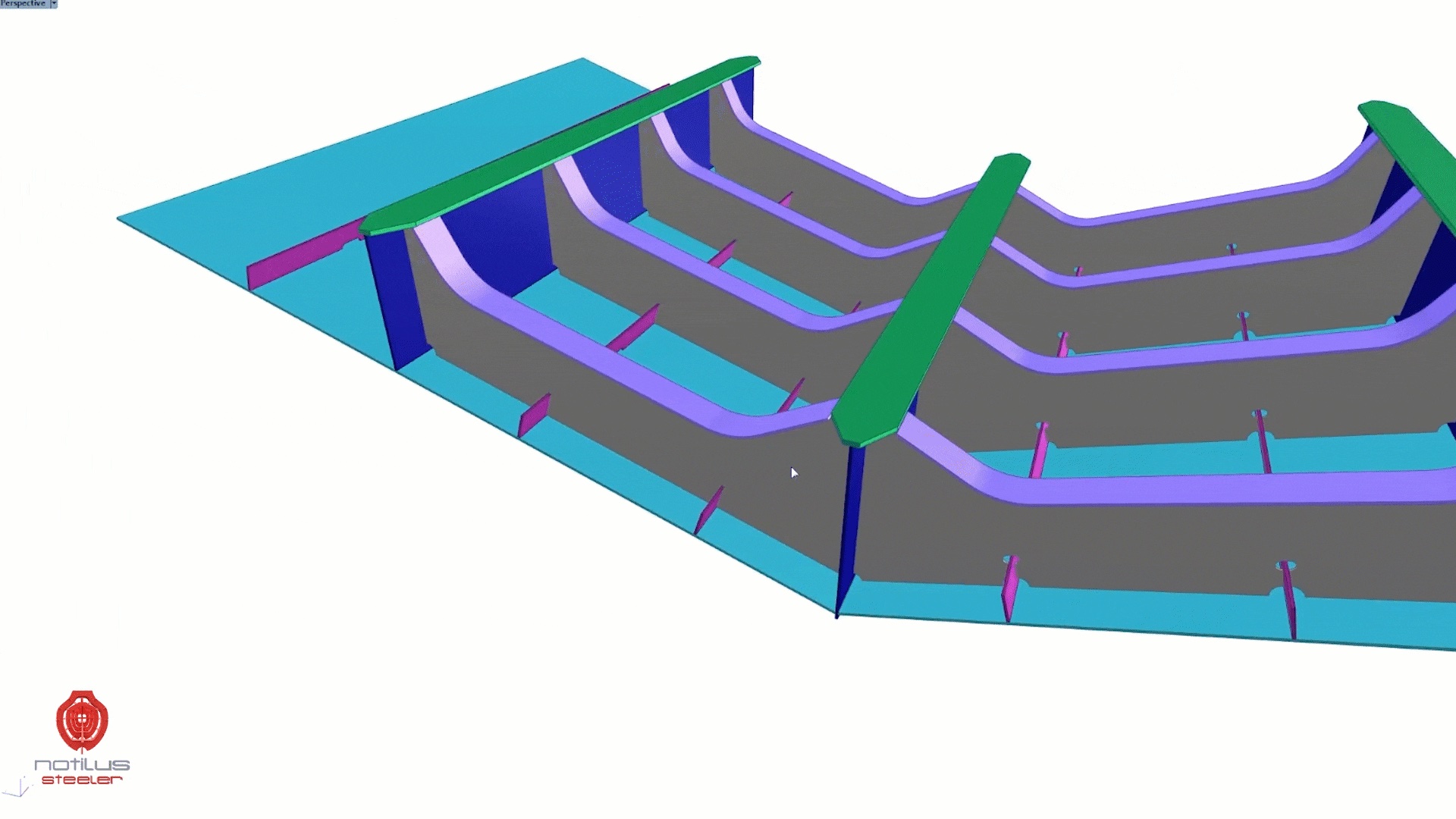

Parametric structure with auto marking, cut-outs and stiffeners.
Plate expansion, lightening holes and block separation — ready for the cutter.
Live material list per block, exportable to Notilus Drafting and Clipper.
A 15-day evaluation license is issued by the engineering team. Tell us about the vessel and the plugins you'd like to try — we reply within one working day.
Notilus Steeler is part of an end-to-end marine engineering toolset. These plug-ins continue the workflow once the steel structure is modelled.
